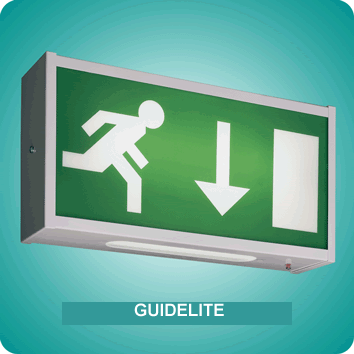

Guidelite

Fluorescent Exit Sign for Internal and External Use

The Guidlite range of fluorescent single and double sided exit signs are manufactured from sheet steel, finished in a choice of either white, black, brass or chrome. Guidlite's many features include hinged internal steel gear tray, rear centre Besa entry, keyhole mounting slots and an opal threshold downlight panel to illuminate the area below the sign.

The double sided version of the Guidlite has a central top Besa entry for ease of fixing. Although this is a double-sided sign it is no deeper than the standard Guidlite exit sign and so co-ordinates with other Guidlite models. A special U shaped gear tray allows even illumination of both legend panels and an opal downlight panel ensures that illumination is also directed below the sign to the escape route and the door threshold.

The Cinema version of the Guidlite exit sign is fitted with a fret-cut legend panel to reduce light emission. They are designed for use in Theatres, Cinemas, School Halls, Discotheques.

The IP65 rated Guidlite is of robust construction making it suitable for external and internal use. As an IP65 sign it is suitable for car parks, sports stadiums, livestock markets and many other applications.

For legend option refer to Legends page.

Non-maintained, maintained and sustained (combined) models are BSI approved to EN60598, and all models are CE and F marked.

The legend panel can be removed from either end of the sign via removable endcaps making Guidlite suitable for close fitting into corners where necessary.
Mains Luminaires
Cat No. Mode/Lamp
Lumens
Kg
GSS8
GSD8

8W 300mm Single Sided
8W 300mm Double Sided

-
-
2.60
2.60
Slave Luminaires
Cat No. Mode/Lamp
Lumens
Kg
GSS8/#/D
GSD8/#/D

8W Slave Exit Sign Single Sided
8W Slave Exit Sign Double Sided

275
275
2.50
2.50
# Specify 12, 24, 50, 110 or 230 Volts AC/DC System Voltage
Emergency Luminaires
Cat No. Mode/Lamp
Lumens*
Kg
GSS8/NM3

NM3 8W 300mm Single Sided

120
2.75
GSS8/M3

M3 8W 300mm Single Sided

120
3.00
GSS8/C3

C3 8W 300mm Single Sided

120
3.00
GSD8/NM3 NM3 8W 300mm Double Sided
120
2.75
GSD8/M3 M3 8W 300mm Double Sided
120
3.00
Options

/LP
/C
/BK
/BR
/CH
/E
/IP65
/VR
/HPF
/HF
/ES
/AD
/ST
/TS

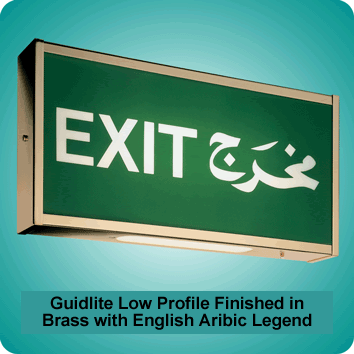

Single Sided Signs available in Low Profile

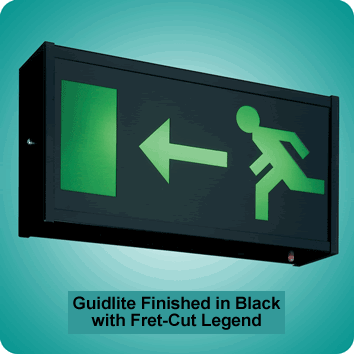

Fret Cut Legend
Black Finish
Brass Finish
Chrome Finish
Economy Version
IP65 Version (Does not have a Downlight Panel)
Anti-Tamper Screws
Power Factor Corrected
High Frequency Ballast
Electronic Start
Intelligent Addressable Luminaire
Self Testing Luminaire
Push to Test Switch

Dimensions
Length 385mm x Width 200mm x Depth 95mm
(Low Profile 65mm)
IP65 Version: Length 445mm x Width 225mm x Depth 95mm

* Emergency Lumens BSI Approved

For other durations, specify the required time period e.g. /NM3 but for 1 hour duration becomes /NM1
