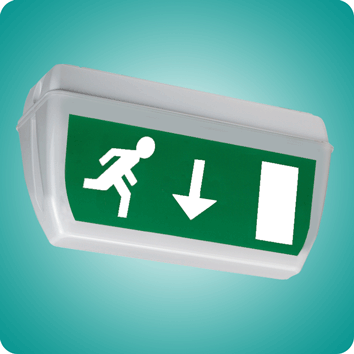

Tiel

IP65 Single or Double Sided Exit Sign

Tiel is a robust IP65 ceiling mounted single or double sided white polycarbonate exit sign. Mains version can be used as a sign system for apartment or building numbering and similar applications.

Its IP65 rating and optional tamper resistant screws, make the Tiel a unique single or double sided sign for all public areas.

The standard luminaire comes complete with two self-adhesive legends (please specify) so that the installer can make up either a single sided or double sided sign when required it can be supplied silk screened with any of our standard legends.

For legend option refer to Legends page.
Mains Luminaires
Cat No. Mode/Lamp
Lumens
Kg
TI 8
TI 2x8
TI 11

1x8W 300mm
2x8W 300mm
11W TC-S

-
-
-
0.90
0.90
0.90
Slave Luminaires
Cat No. Mode/Lamp
Lumens
Kg
TI8/#/D

8W Slave Luminaire

275
0.85
# Specify 12, 24, 50, 110 or 230 Volts AC/DC System Voltage
Emergency Luminaires
Cat No. Mode/Lamp
Lumens*
Kg
TI8/NM3

NM3 8W 300mm

80E
120S
180H
1.20
TI8/M3

M3 8W 300mm

80E
120S
180H
1.45
TI2x8/NM3 NM3 2X8W 300mm
150S
250H
1.70
Options
/E
/H
TI/WH
TI/BR
TI/CH
SAL 1
/VR
/HPF
/O
/PH
/HF
/ES
/AD
/ST
/TS

Economy Version
High Output Version
White Finished Semi-recess Trim
Brass Finished Semi-recess Trim
Chrome Finished Semi-recess Trim
Self-adhesive exit legend kit
Anti-tamper Screws
Power Factor Corrected
Opal diffuser
Dawn/Dusk Photo Cell
High Frequency Ballast
Electronic Start
Intelligent Addressable Luminaire
Self Testing Luminaire
Push to Test Switch

Dimensions
Length 350mm x Width 108mm x Depth 204mm

* Emergency Lumens

For other durations, specify the required time period e.g. /NM3 but for 1 hour duration becomes /NM1
